Motovario Distributors USA

Founded in 1965 in the town of Formigine, Italy (greater Modena area), Motovario produces various styles of gearboxes, gearmotors, AC motors, variators (mechanically adjustable drives) and most recently both motor mounted and cabinet mounted frequency inverters. In 1999, Motovario acquired the Italian manufacturer, Spaggiari, whose product line was very similar in breadth and scope.

In 2014, Motovario acquired the Spanish company, Pujol Muntala, whose products include geared motors, variators and both single and 3 phase motors.

In addition to the above, Motovario has an extensive range of single phase motors, three phase motor with or without rakes, double polarity motors/brakemotors and high-starting torque single phase motors. Motorvario also provides motor mounted or cabinet mounted frequency inverters as the perfect complement to control their gearmotors.

Gearboxes

Request A Quote
Item Image

NMRV Series

  • Worm Gear Reducers
  • Ratio: 5 to 100
  • IEC or Nema Motorized input
  • Input Power: up to 18.5kW
  • Torque: up to 1550Nm
  • Options:
  • Free input shaft
  • Helical prestage
  • Plug-in output shafts
  • Double units for higher ratios
  • Hostile environment
  • 10 case sizes
Item Image

SW Series

  • Worm Gearbox
  • Ratio 5 to 100
    IEC motorized input
  • Input Power: up to 7.5kW
  • Torque: up to 630Nm
  • Options:
  • Free input shaft
  • Output flanges, feet
  • 7 case sizes
Item Image

H series

  • H-IH-PH-CH
  • Helical Gearbox
  • 1, 2 or 3 stage reduction
  • Ratio 1.23 to 282.10
  • IEC motorized input
  • Input Power: up to 45kW
  • Torque: up to 8000Nm
  • 8 case sizes
Item Image

HA Series

  • HA-IHA-CHA
  • Helical Gearbox-Aluminum
  • 1, 2 or 3 stage reduction
  • Ratio 1.33 to 353.98
  • IEC motorized input
  • Input Power: up to 5.5kW
  • Torque: up to 500Nm
  • 4 case sizes
Item Image

R Series

  • RT-RM-RF
  • Helical Gearbox-Cast Iron
  • 1, 2 or 3 stage reduction
  • Ratio 1.4 to 250
  • IEC motorized input
  • Input Power: 0.12 to 30kW
  • Torque: up to 3200Nm
  • 6 case sizes
Item Image

S Series

  • S-IS-PS-CS
  • Shaft Mounted Gearbox
  • 2 or 3 stage reduction
  • Ratio 4.06 to 394.69
  • IEC motorized input
  • Input Power: 0.12 to 45kW
  • Torque: up to 9500Nm
Item Image

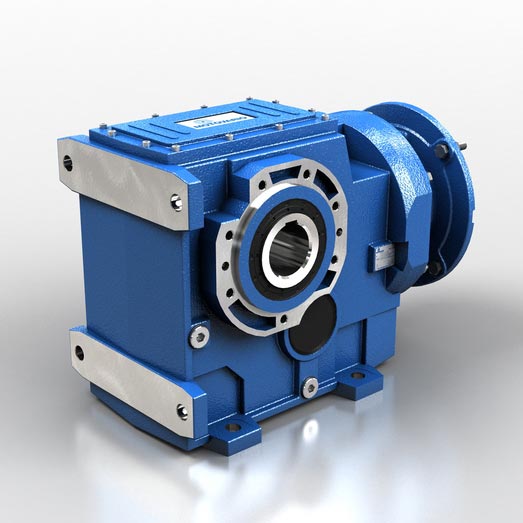

B Series

  • B-IB-PB-CB
  • Helical Bevel Gearbox
  • 3 stage reduction
  • Ratio 5.71 to 187.24
  • INC motorized input
  • Input Power: upt o 90kW
  • Torque: 13000Nm
  • Hollow or Solid Output shaft
  • Shrink disc
  • Reinforced bearings
  • Backstop device
Item Image

VAR Series

  • TXF-VH-S-VAH
  • Variable Speed Gearboxes
  • Numerous designs & styles of
  • Aluminum or cast iron variators
  • Options:
    with Helical or worm gearbox

If you don't see it here, send us an email! We'll SOURCE what you need! Ask Us A Question
